Information Technologies ...

�@

General Information

Model Name

Material

Enclosure Dimension

Packing Info

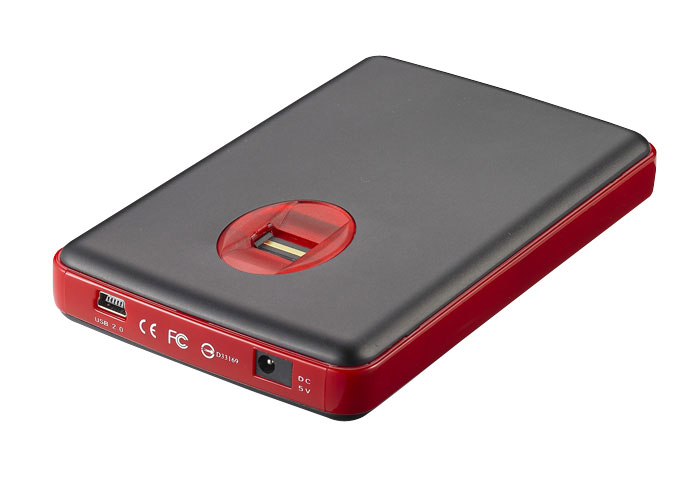

ITD-FP25I (IDE HDD) / ITD-FP25S (SATA HDD)

Aluminum case

12 x 7.8 x 18 mm ( L x W x H )

N.W. / G.W. : 5.9 kgs / 6.5 kgs . 20pcs / CTN / 1.2'

�@

Specifications

Interface

Supported HDD Type

Supported OS

HDD File System

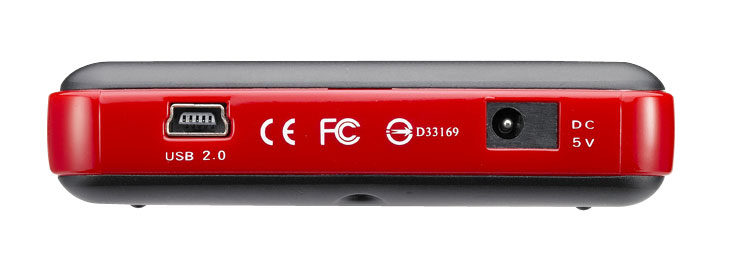

USB2.0

2.5" IDE hard disk drive / 2.5" SATA hard disk drive

Windows 2000/XP

FAT

Fingerprint security

�DScan Area: 9.6 mm x 0.8 mm; 508 pixel per inch array

�DSuper-Sweep fingerprint sensor, High Definition 192x8 pixels

�DAdvanced fingerprint sensor with high sensitivity.

�DEnhanced fingerprint discriminating algorism.

�DSupport 10 sets fingerprints and one password setting function.
