Key Features:

Stand-alone/ palm size / high-speed/ adapter-less media storage card reader.

USB (Universal Serial Bus) 2.0 specification interface.

Compliant with USB Mass Storage device class specification.

Supports RS MMC 4.0 8-Bit specification.

Supports new xD v1.2 specification.

Five slots can accept up to 25 types of media card.

Supports small form factor flash card; such as mini SD, RS-MMC, T-flash, MS-Duo etc.

Hot swappable and Plug & Play capability.

Slots can be used at the same time for data exchange except T-flash and SD slots.

Supports Media Card-Icon display.

Supports two icon-indicators for easy recognition.

Work on Bus-powered, no external power supply required.



Specifications:

Five Memory Slots:

no single adapter is needed from small cards

CF/MD, SM/xD , SD/mini SD/MMC , MS/MS-Duo , T-Flash

Four Media Icons display:

MMC/SD/(T-Flash), Compact Flash I/II, Smart Media/xD, MS/MS Pro

Media card supports:



CF (TypeI & TypeII) , CF UlrraII, Micro Drive, Magic Gate , SM, SM ROM, xD, XD M-series , SD, SD Ultra II, mini SD, MMC-I, MMC-II, MMC 4.0,MMC Dual Voltage, RS-MMC, RS-MMC Dual Voltage, RS-MMC 4.0, T-Flash, MS, MS Select, MS ROM, MS PRO, MS Magic Gate, MS-PRO Magic Gate, MS-DUO Magic Gate, MS-PRO-DUO etc.

Indicators:

One power-on icon indicator.

One media R/W icon indicator.

Interface:

5-Pin Mini USB support USB1.1/2.0

Operating temperature:

0�C~40 �C

Stock temperature:

-20�C~60�C

Board Dimensions (L*D):

65*55mm

Housing Dimensions (L*D*H):73*59*17 mm



Certification:

FCC Class B, CE

System support:

Windows� 98/SE, Windows�ME, Windows�2000, Windows�XP

Mac OS 8.6X or higher

Linux OS 2.4.X or higher



Package contents:

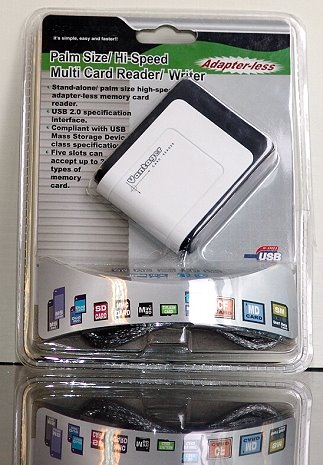

Card Reader / USB cable / Setup disc with electronic manual
